Brand: Industrial Scientific
Model: Ventis MX4
The Industrial Scientific Ventis MX4 is a rugged, wearable four‑gas monitor designed for reliable detection of combustible, toxic, and oxygen‑deficient atmospheres in industrial settings. It supports simultaneous monitoring of up to four gases and can be configured for personal protection or confined space entry work. The instrument’s flexible sensor options and battery configurations make it suitable for a broad range of applications such as oil & gas, petrochemical, mining, utilities, construction, and manufacturing. It transitions seamlessly between diffusion monitoring and pumped sampling with an optional slide‑on or integral pump, enabling exposure assessment at a distance when required.
We also offer T40 II Rattler, Tango TX2, Ventis Pro5 Detector. Click here to send inquiry.

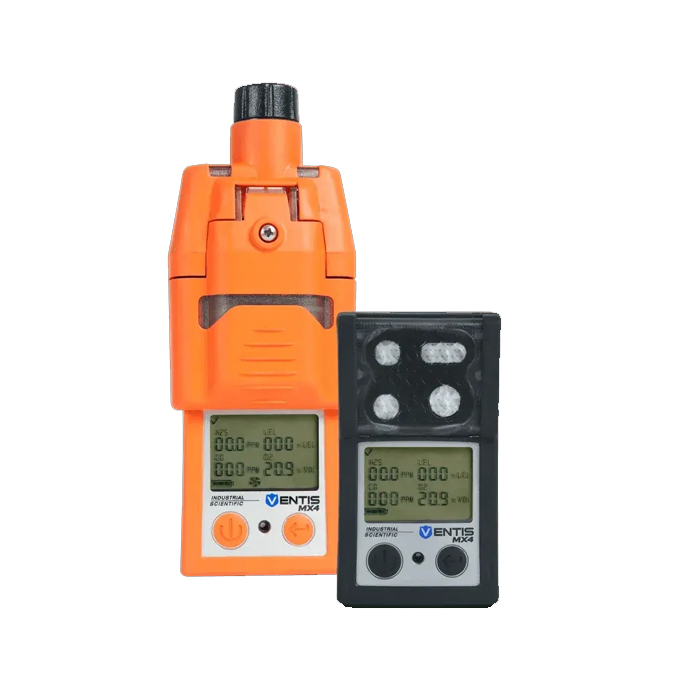

Industrial Scientific Ventis® MX4 4-Gas Monitor
Features and Benefits
Simultaneous Multi‑Gas Detection: Supports monitoring up to four gases, including LEL (methane or pentane), oxygen (O₂), carbon monoxide (CO), hydrogen sulfide (H₂S), nitrogen dioxide (NO₂), sulfur dioxide (SO₂), and CO/H₂ low sensor options.
Flexible Pumping Options: Available in diffusion mode or with an optional integral or slide‑on pump for pre‑entry confined space sampling.
Rugged, Portable Design: Lightweight and compact with a polycarbonate housing and protective rubber overmold, suitable for harsh industrial environments.
Multiple Battery Configurations: Offers standard, slim, or extended‑range rechargeable lithium‑ion batteries for long runtime, plus replaceable AAA alkaline options to match work cycle requirements.
Clear User Interface: Backlit LCD and two‑button navigation deliver real‑time gas readings and intuitive operation.
Robust Alarm System: Ultra‑bright LEDs, a loud audible alarm, and vibration alerts ensure immediate notification of hazardous conditions.
Smart Maintenance & Connectivity: Compatible with DSX/DSXi docking stations and iNet Exchange for automated calibration, bump testing, charging, and proactive performance checks.
Environmental & Compliance Ratings: High ingress protection (IP66/67) and global hazardous area certifications make the monitor suitable for demanding field use.
Warranty: Extended coverage for the monitor and key sensors enhances total cost of ownership.
Specifications of Industrial Scientific Ventis® MX4 4-Gas Monitor
| Model Name | Ventis MX4 4‑Gas Monitor |
| Gases Detected | Up to four: LEL (methane/pentane), O₂, CO, H₂S, SO₂, NO₂, CO/H₂ low |
| Sensor Types | Catalytic bead (combustibles); Electrochemical (O₂ & toxic gases) |
| Measuring Ranges | Combustibles: 0–100% LEL; CH₄: 0–5% vol; O₂: 0–30% vol; CO: 0–1000 ppm; H₂S: 0–500 ppm; NO₂: 0–150 ppm; SO₂: 0–150 ppm |
| Display | Backlit Liquid Crystal Display (LCD) |
| Interface | Two‑button operation |
| Alarms | Ultra‑bright LEDs, audible (95 dB at 30 cm), vibration |
| Battery Options & Runtime | Standard Li‑ion: ~12–18 h; Extended Li‑ion: ~20 h; Pumped mode: ~12 h with extended battery; AAA alkaline: ~4–8 h |
| Pump Options | Integral or optional slide‑on pump for remote sampling |
| Data Logging | On‑board data storage (varies by configuration) |
| Operating Temperature | –20 °C to +50 °C |
| Humidity Range | 15–95% RH non‑condensing |
| Ingress Protection | IP66/67 |
| Dimensions (No Pump) | ~103 × 58 × 30 mm |
| Dimensions (With Pump) | ~172 × 67 × 66 mm |
| Weight (No Pump) | ~182 g |
| Weight (With Pump) | ~380 g |
| Certifications | ATEX, IECEx, UL, CSA, MSHA, ANZEx, INMETRO, CE |
| Warranty | 4 years (monitor and primary sensors); 2 years (other components) |
